Cube-corner Prism

φ2-φ200mm cube corner prisms is our advantage,The products cover geodesy, mapping, satellite positioning, military, communications and other fields, we have a large number of domestic and foreign customers and also have established good relationship of trade cooperation with them.

Cube corner prism is a kind of glass element used for reflection, It shoots back a beam of light at three 90° angles.  The angles tolerance must within a few seconds.

Share:



Specifications

MaterialH-K9L N-BK7 UV Fused silica,Germanium
Demenision2-200mm
Demenision tol.+0.00/-0.05
Surface Quality40-20
CA>90%
Surface Flatness1/4 1/8 lambda@632.8nm
Wavefront Distortion1/2 lambda@632.8nm
Angle tolace0.2 seconds
CoatingAR BBAR

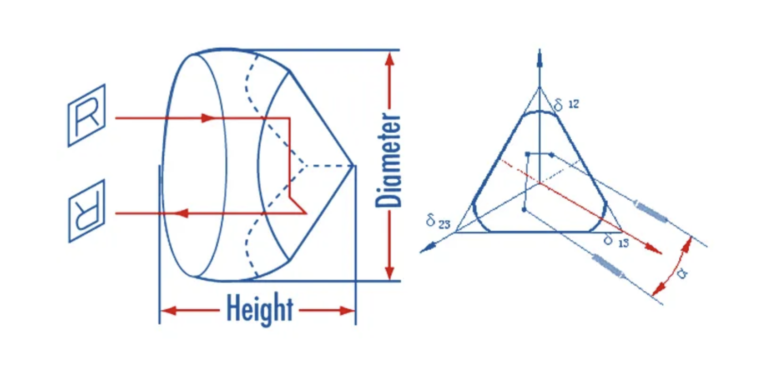

screenshot 2026 06 25 at 1.14.35 pm
