Glass Aspheric Lens
Custom Glass Aspheric Lenses from Ashley-Tech
We supply custom glass aspheric optical lenses with tight tolerance for optical systems. Send your drawing for a quote.Ashley-Tech manufactures high precison aspheric lens, the accuracy can be 0.5-10um. We professionally make complicated optical system, from design, manufacture to assambly. Material range from optical glass to infrared glass with Traditioanl polish and CNC polish. High Precison aspheric lens mainly used for Thermal image
Parameter
Our glass aspheric lenses are manufactured with high precision, offering diameters from 5 to 600 mm and surface quality up to 10‑5. Surface irregularity is controlled to λ/4 (632.8 nm), with PV ranging from 0.5 to 10 µm, fully customizable per client specifications. We provide optical-grade JGS1 glass and infrared materials, with single-layer or multi-layer AR coatings spanning 350–1585 nm, or custom wavebands as needed.
| Structure | Aspheric lens, Cylindrical Aspheric lens, Spherical Aspheric lens |
| Material | Optical glass, JGS1 |
| Diameters Available | 5mm to 600mm |
| Diameter Tolerance | +0.00/-0.02mm or customer design |
| Surface Quality | 10-5 |

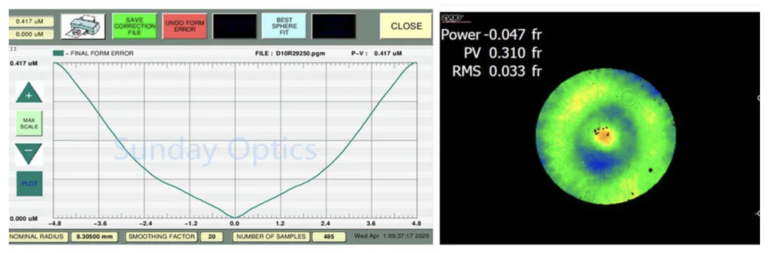

| Surface Irregularity | λ/4 @632.8nm or customer design |
| PV | 0.5-10um |
| Thickness tolerance | +0/-0.02mm |
| Clear Aperture | >90% of Diameter |
| Chamfer | 0.05-0.5mmx45degree, according to customer’s needs. |
| Centeration | 3 arcmin |
| Coating | Single Mag2, Multiple Layers AR Coating A: 350-650nm B: 650-1050nm C: 1050-1585nm D: Customer Design |
Applications
Thermal Imaging Lenses – Optimized for high transmission and minimal field curvature in IR cameras and thermal systems.
Laser Collimation & Fiber Coupling – High numerical aperture (NA) lenses designed for low aberration and precise beam alignment.
OEM Camera & Optical Modules – Compact, high-precision aspheric lenses ideal for space-limited imaging systems.
Analytical & Measurement Instruments – Replace multi-element systems with a single aspheric lens to reduce weight and simplify assembly.
