Plano Concave Cylindrical Lens

Double convex cylindrical lenses as Biconvex lenses are used as magnifiers, objectives, condensing systems,Sunday also offer coatings on the double convex cylindrical lenses.

Parameter

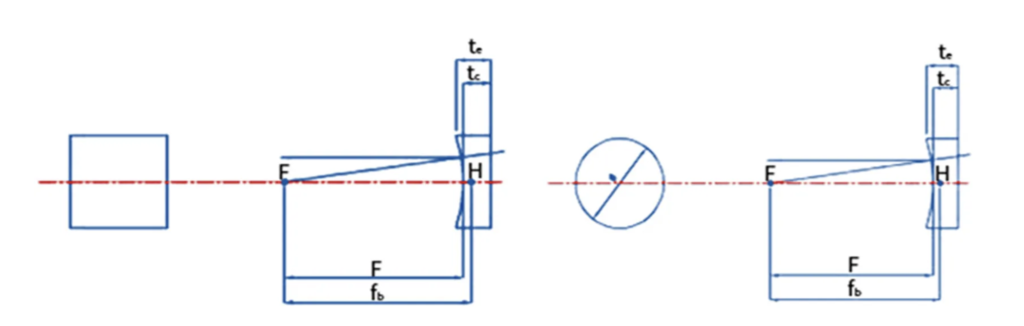

Structure	Plano Concave Cylindrical lens
Material	Optical glass, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe ZnS, Sapphire
Diameters Available	2mm to 600mm
Diameter Tolerance	+0.00/-0.02mm or customer design
Surface Quality	10-5

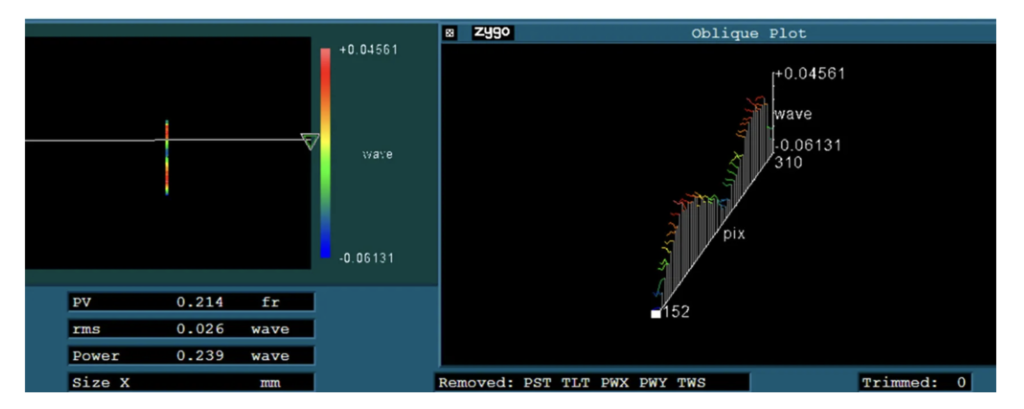

Surface Irregularity	λ/10 @632.8nm or customer design
Thickness tolerance	+0/-0.02mm
Clear Aperture	>90% of Diameter
Chamfer	0.05-0.5mmx45degree, according to customer’s needs.
Centeration	3 arcmin
Coating	Single Mag2, Multiple Layers AR Coating A: 350-650nm B: 650-1050nm C: 1050-1585nm D: Customer Design
